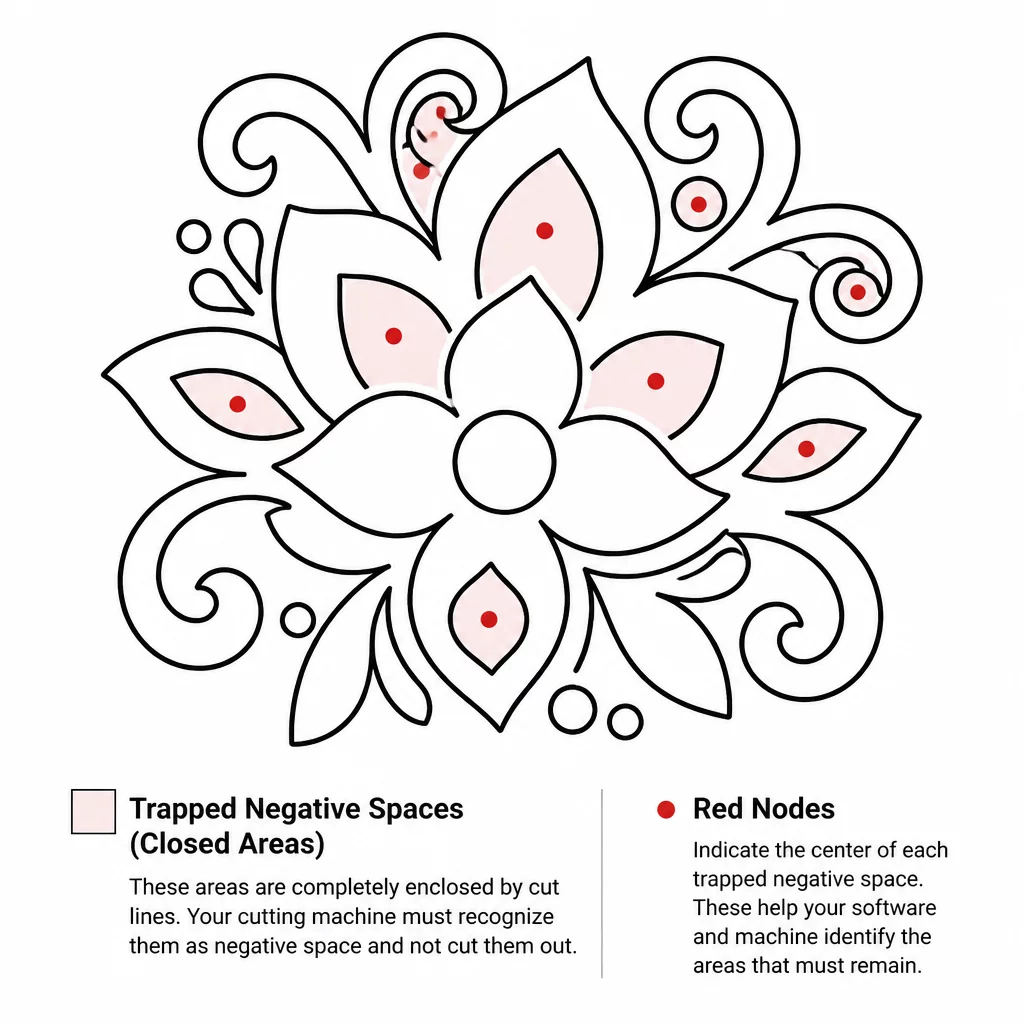

Trapped Negative Space Identification
Diagnostic workflows for isolating unlinked enclosed voids, micro-gaps, and non-cutting islands in complex multilayer vector illustrations before machine output.
Examine Proof
Vector Module 03
Internal Shapes & Negative Space
Comprehensive technical breakdown of internal counter cut sequencing, negative void extraction, compound path winding rules, and floating island preservation in plotters and laser cutters.
Internal Cut Precision
100% Verified
Case Repository
Negative Space & Counter Studies

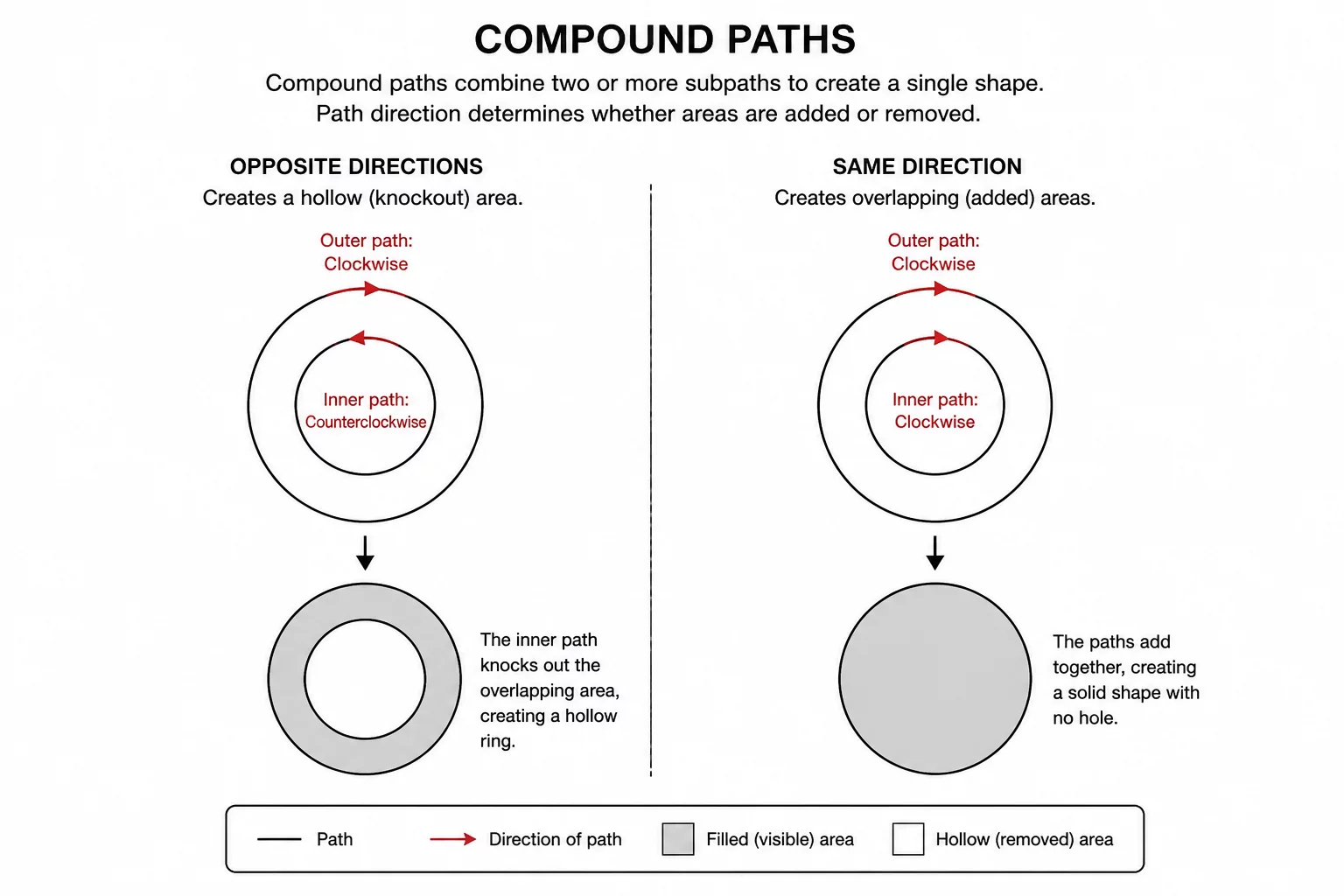

Compound Path Reversal Logic
Understanding Even-Odd versus Non-Zero fill rules and why path sub-direction flipping resolves inverted negative cut operations across diverse vector software.
Examine Proof

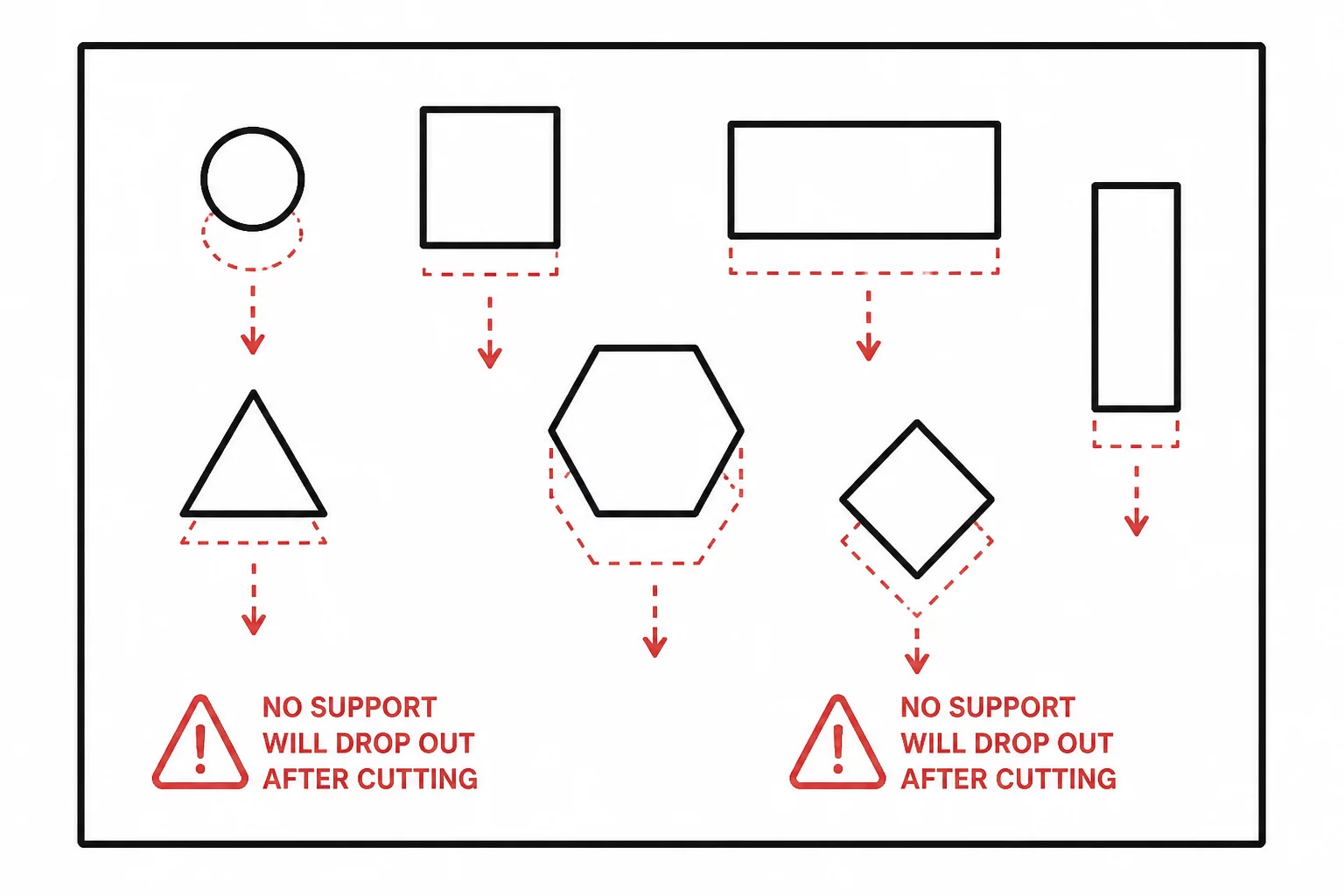

Floating Internal Elements Management
Strategic bridge placement and stencil connect logic to prevent detached centers and free-floating cutouts from dropping out during vinyl weeding and laser passes.
Examine Proof
Technical Principles
Compound Sub-Path Directional Mechanics
In cutter-ready vectors, inner boundaries are governed by nested sub-path hierarchies. If the interior contour winds identically to the outer contour under Non-Zero fill rules, plotters may treat the counter hole as a solid fill, causing incorrect pass sequencing and distorted weed borders.
Fill Interpretation
Inspect the intended openings
Bridge Preparation
Test the intended material and size
Silhouette Studio Inner Path Fixes
Learn actionable methods to release compound paths, verify internal cut-line nesting, and enforce correct inner-before-outer cutting sequences directly inside Silhouette Studio.
Read Silhouette Guides
